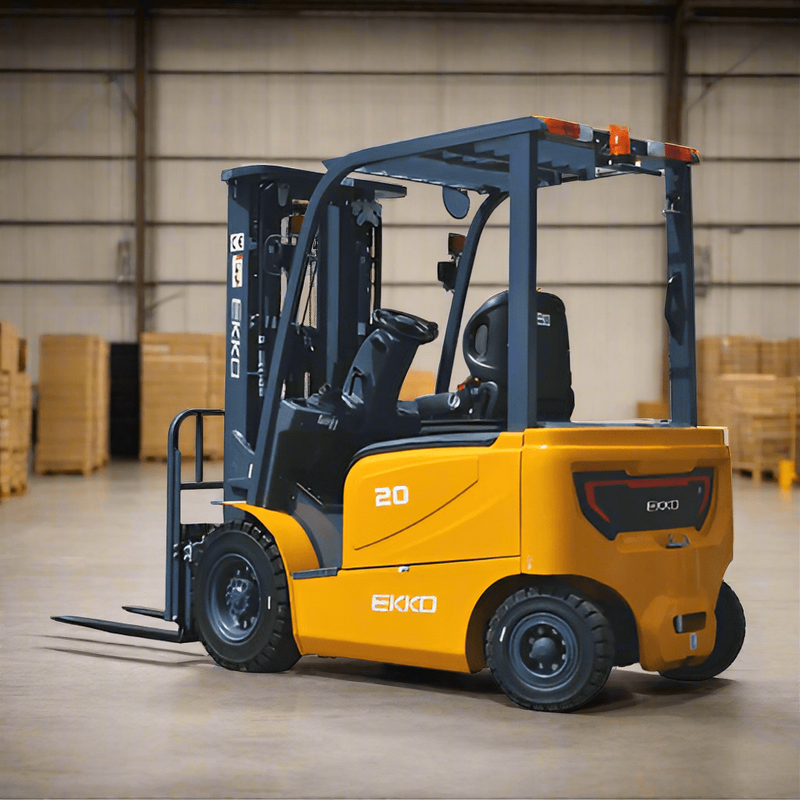

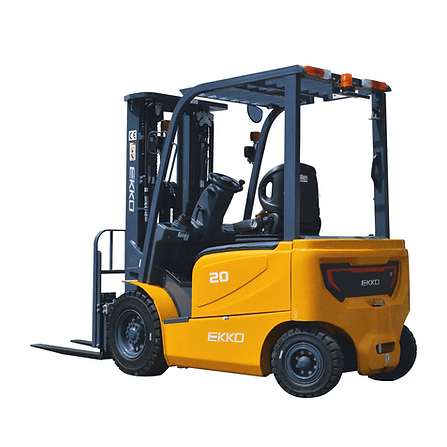

The EKKO EK20GS 4 Wheel Electric Forklift is designed for use for all of your material handling demands. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 4500 lb
- Raised Height 189" (15.75ft)
- Side Shifting Forks
- Free Lift 47.48
- Fork Length 42
- ZAPI Controller
- Battery 48/600 AH Lead acid
- Solid Pneumatic Tires

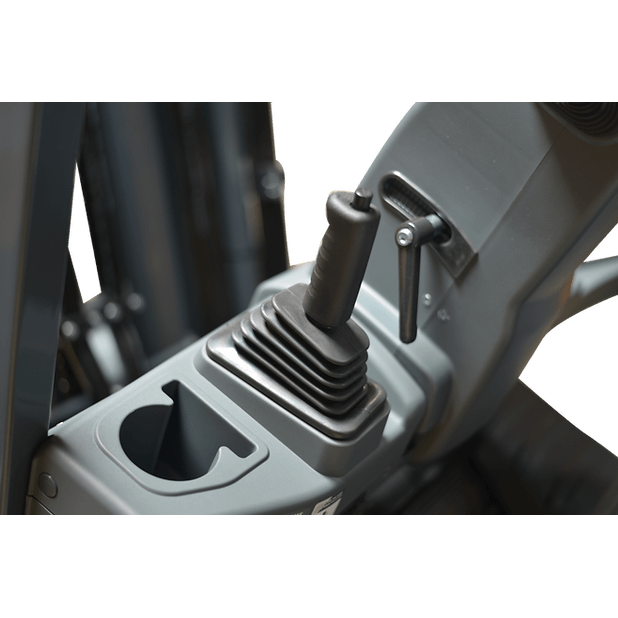

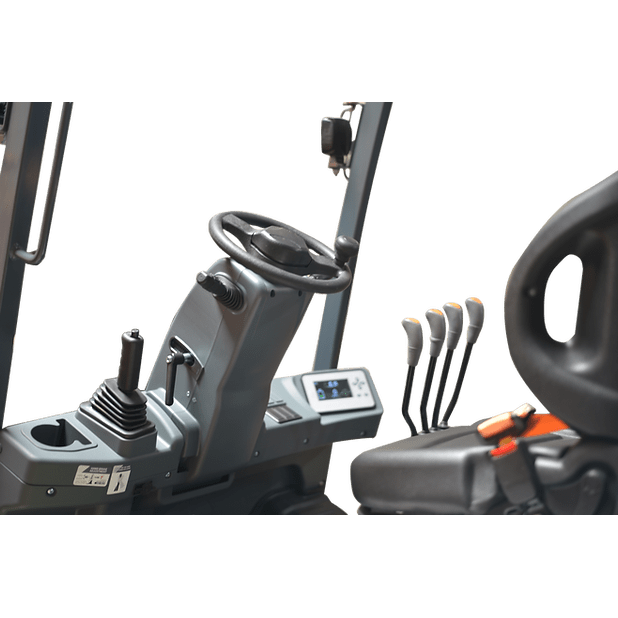

- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- 3-Phase 480V Chager (optional 220V)
- 3 Year Limited Warranty
Specifications
|
Model
|
|
EK20GS
|
|
Drive type
|
|
Electric Forklift
|
|
Type of operation
|
|
Electric
|
|
Load Capacity
|
LBS
|
4,500
|
|
Load Center distance
|
in
|
20
|
|
Liftheight
|
in
|
189 |
|
Wheelbase
|
in
|
65.4
|
|
Tilt
|
DEG
|
6/6
|
|
Tire material
|
|
Solid Pneumatic Tire |
|
Driving Mode
|
|
Seated
|
|
Service Brake
|
|
Hydraulic Foot Pedal |
|
Overall width
|
in
|
46.45
|
|
Overall length with forks
|
in
|
133
|
|
Overall lengthwithout forks
|
in
|
96
|
|
Min outisde turning radius
|
in
|
85
|
|
Traveling speed (laden/unladen)
|
mph
|
9/9.3
|
|
Ground clearance (at mast)
|
in
|
3.95
|
|
Lowered Mast Height
|
in
|
79
|
|
Free Lift
|
in
|
47.48
|
|
Service Weight
|
LBS
|
9,232
|
|
Side Shift
|
|
3-way valve
|
|
Engine Mode
|
|
Zapi Controller
|
