Overview

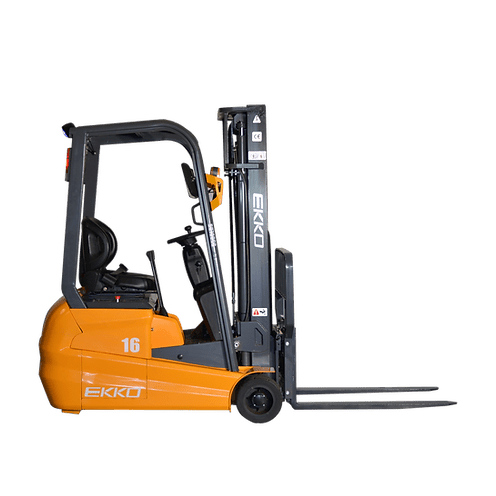

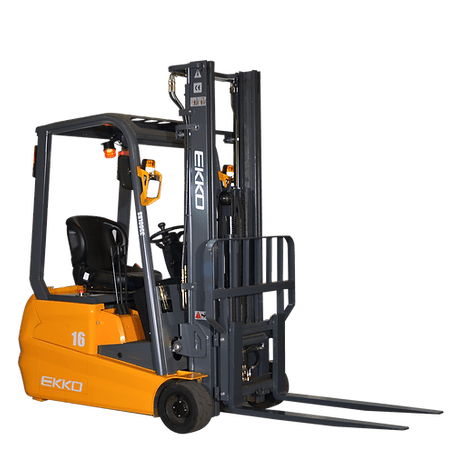

The EKKO EK16A-138 3-Wheel Electric Forklift is specifically designed for small aisles, limited spaces, and budget-friendly operations. Perfect for loading and unloading trucks, managing loading docks, stock rooms, manufacturing floors, and warehouse environments. Recommended for indoor use on flat surfaces.
Key Features
-
Load Capacity: 3,500 lbs
-
Maximum Lifting Height: 138" (11.5 ft)
-
Free Lift Height: 34.4"
-
Side Shift: Included
-
Adjustable Forks: 7.9-26"
-
Fork Length: 42.1"
-
Tilt Function: 3°/6°
-
Zapi Controller: Provides precision control
-
Drive Motor: 24V AC
-
Lift Motor: 3.3 kW
-
Cushion Tires: Optimized for smooth indoor operation
-
Hydraulic Power Steering (HPS): Ensures effortless handling
-
Steel Construction: Built for durability and strength
-
Robotic Welding: Precision-engineered for reliability
-
Charger: Included
-
Battery: 24V/320Ah (Included)
Specifications
| Model: |
EK16A-138 |
| Lift: |
Electric |
| Drive: |
Electric |
| Load Capacity: |
3,500 lbs |
| Load Center Distance: |
20" |
| Wheel Base: |
49.2" |
| Maximum Lifting Height: |
138" |
| Free Lifting Height: |
34.4" |
| Lowered Mast Height: |
86.6" |
| Fork Tilt (Forward/Backward): |
3°/6° |
| Side Shifting Forks: |
3-way valve |
| Overall Length: |
107.1" |
| Overall Width: |
42.1" |
| Fork Dimensions (T/W/L): |
1.4"/4"/42.1" |
| Fork Adjustment Width: |
7.9-26" |
| Turning Radius: |
58.9" |
| Max Gradient Performance (Laden/Unladen): |
6%/10% |
| Lift Speed (Laden/Unladen): |
4.71"/10.2" |
| Lowering Speed (Laden/Unladen): |
11.8"/15.7" |
| Charger: |
24V/50A |
| Drive Motor: |
AC |
| Lift Motor: |
3.3 kW |
| Battery Voltage: |
24V/320Ah |
| Service Weight: |
5,020 lbs |
Why Choose the EKKO EK16A-138?
The EKKO EK16A-138 delivers exceptional performance in compact spaces with enhanced maneuverability and power. Engineered for durability and efficiency, it’s an ideal solution for material handling tasks in warehouses and manufacturing floors.
