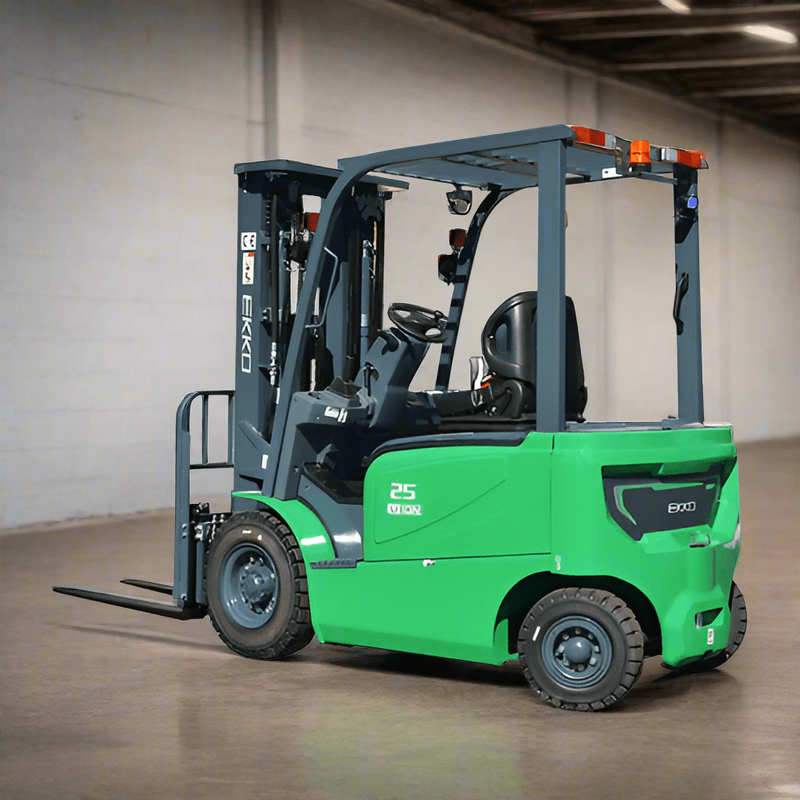

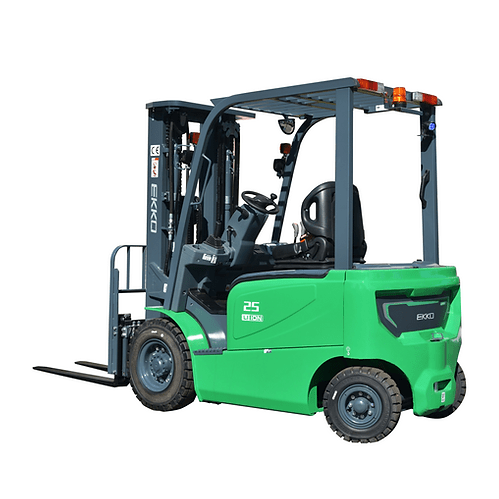

The EKKO EK25G-212LI 4 Wheel Electric Forklift is designed for use for all of your material handling demands. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 5000 lb
- Raised Height 212"
- Side Shifting Forks
- Free Lift 54.9
- Fork Length 42
- ZAPI Controller
- Battery 80/202 Ah Lithium
- Solid Pneumatic Tires

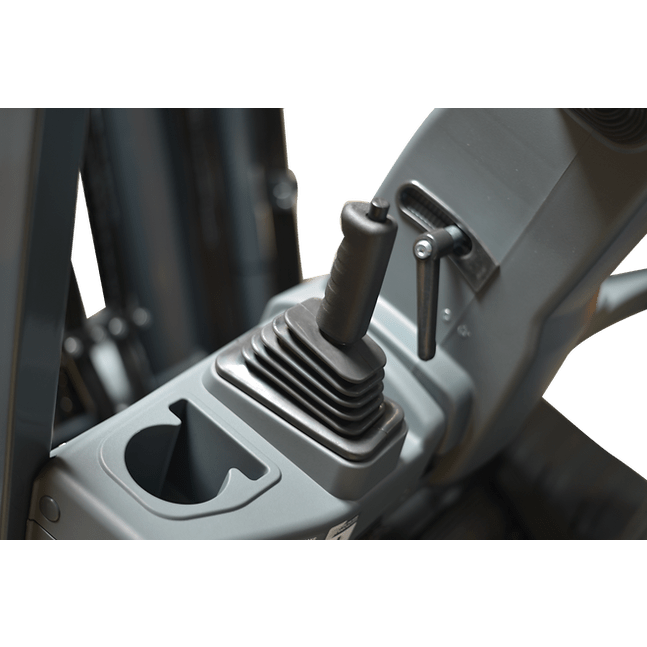

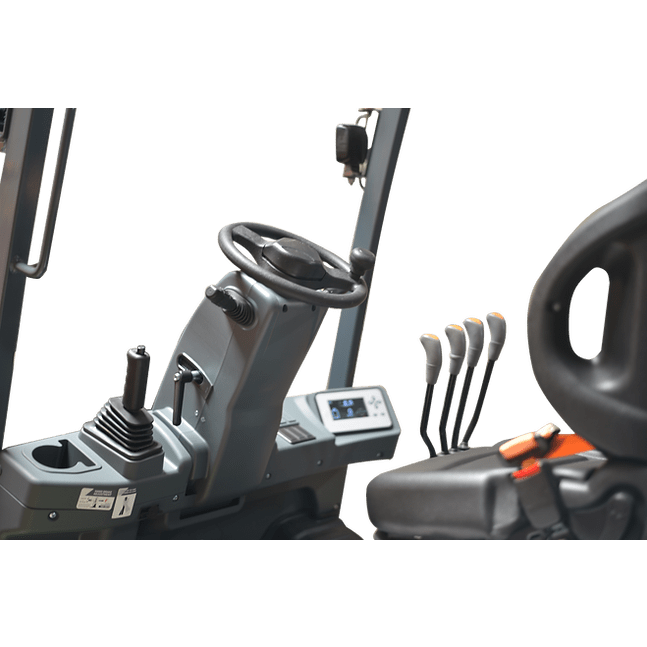

- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- 3-Phase 480V Charger (optional 220V & 110V)
- 3 Year Limited Warranty
Specifications
|
Model
|
|
EK25G-212LI
|
|
Lift
|
|
Electric
|
|
Drive
|
|
Electric
|
|
Load capacity
|
(lb)
|
5000
|
|
Load center distance
|
(in)
|
20
|
|
Wheel base
|
(in)
|
65.35
|
|
Lifting height
|
(in)
|
212
|
|
Free lifting height
|
(in)
|
54.9
|
|
Lowered mast height
|
(in)
|
94.5
|
|
Mast/Fork carriage tilt forward/backward
|
( )
|
6/6
|
|
Side Shifting Forks
|
|
3-way valve
|
|
Overall length
|
(in)
|
138
|
|
Overall width
|
(in)
|
46.45 |
|
Fork size, Thick/Width/Length
|
(in)
|
1.57/4.72/42.12 |
|
Fork adjust width
|
(in)
|
8.7-29
|
|
Turning radius
|
(in)
|
84.2
|
|
Max.gradient performance, laden/unladen
|
(%)
|
15/25
|
|
Driving Motor
|
(K/W)
|
11
|
|
Lifting Motor
|
(K/W)
|
12
|
|
Battery voltage
|
(V/Ah)
|
80/202AH Lithium
|
|
Service Weight
|
(lb)
|
9915
|
